Shift Management - How are open shifts closed in the RIW System?


RIW cardholders are expected to swipe out of every shift worked on a site and should be encouraged to swipe out as part of their daily site exiting process. Ideally, cardholders should swipe out of a site the same way that were swiped in.


There may be instances where a cardholder cannot swipe out at a site due to a Kiosk not being available or the Access Controller having left the site.


This process is to provide guidance on automated system behaviour and how shifts may be closed for cardholders that have a swipe that is open from an outstanding previous shift, where working hour rules have been configured for a site.


PLEASE NOTE: It is industry best practice that all cardholders swipe out of every shift. Network Operators, Employers, Project Admins and Site Admins should encourage all site attendees to swipe in and out of sites to ensure a true record of shift length is recorded.




This instruction applies to the following user roles:

  • Advanced Project Admin
  • Access Controller
  • Employer Admin
  • Employer Admin - No Payment
  • Employer Admin - Read Only
  • Helpdesk
  • Network Manager
  • Network Manager - Read Only
  • Project Admin
  • Site Admin
  • Rail Industry Worker (myRIW)


In all the scenarios below, any open shifts that are automatically closed will default to a 12 hour shift duration and the swipe event will have the Card Checker column recorded as automatic.



Scenario 1 - Cardholder does not swipe out (shift is open) and then swipes into a site at a Kiosk

Where a cardholder has an open shift and swipes into a Kiosk on a subsequent shift, any previous shift that has not be signed out will automatically close and the cardholder will be swiped out from the previous shift. A 12 hour shift duration will be applied.


Scenario 2 - Cardholder does not swipe out (shift is open) and then swipes into a site with an Access Controller

Where a cardholder has an open shift and swipes in with an Access Controller on a subsequent shift, and then the Access Controller swipes out the cardholder on the current shift, any previous open shifts that have not be signed out will automatically close and the cardholder will be swiped out from all shifts. A 12 hour shift duration will be applied.


Scenario 3 - Muster List swipe out activity

An RIW System user from a Network Operator, Project or Site can produce a Muster List of all open shifts in the RIW System and can swipe out cardholders that have failed to sign out.  A 12 hour shift duration will be applied. For more information about this, please refer to How does a company manage the Muster List?


Scenario 4 - Automatic sign out after 24 hours

An RIW System generated script is run each day that closes any open shifts that occurred greater than 24 hours ago, if the shift is still open. A 12 hour shift duration will be applied.


Scenario 5 - Automatic sign out after planned RIW System service interruption

An RIW System generated script is run after a planned service interruption that closes any open shifts that occurred 12 hours ago, if the shift is still open. A 12 hour shift duration will be applied.



Article Link:

https://support.riw.net.au/support/solutions/articles/51000172985




Did you find it helpful? Yes No

Send feedback
Sorry we couldn't be helpful. Help us improve this article with your feedback.

How to view swipe activity on a network, project, site or zone


This article details how to view swipe activity on a RIW controlled network, project, site or zone.


A swipe is a recorded event in the RIW System where a Rail Industry Worker or visitor presents a RIW card or visitor pass to swipe in or out of a RIW controlled site on the RIW App or Web Card Reader (Access Controller, Spot Checker or Self-Swipe), or a Kiosk.



This instruction applies to the following user roles:

  • Advanced Project Admin
  • Employer Admin
  • Employer Admin - No Payment
  • Employer Admin - Read Only
  • Helpdesk
  • Network Manager
  • Network Manager - Read Only
  • Project Admin
  • Site Admin


1


Go to https://app.riw.net.au and log in using your credentials.


2


Click Swipes.


3


On the Swipes screen, use the search filters to refine the results you want to display. Click Search.

You can filter by Rail Industry Worker, Job Role, Project, Site, Zone and Start/End Date and Time. By default, only swipes for active sites will display, but you can deselect this flag if required.



Once the search has been completed, you can further filter the results by Swipe Event.


A swipe event is a type of recorded event, such as Swipe In, Swipe Out, Kiosk Swipe In, Spot Check etc. Refer to What are the different type of swipe events and deny reasons in the RIW System? for more information.



Once an event has been chosen from the Event drop down, click Filter. The table will update accordingly.


You can sort each column by clicking on the column header, and you can drag and drop columns into a preferred order.


You can also Export the list to a CSV file.


4



Below the data table you will also find a map view of the filtered swipe data.


If you adjust the search parameters or filters, you must click Search or Filter to refresh the map view.

Interacting with the map by double clicking on a site will refresh the data table and display only that site data.

5



Depending on your view, the below window will display how many projects and sites are visible in the view, and how many swipe events have been recorded by individuals. It will also provide a heat map of when swipe activity occurred (note: this is in UTC time).


6


You can toggle between a Map or Satellite view, fullscreen or tilt view, or use the zoom in or zoom out functions.



The map view is also found on the muster list. For more information refer to How to use the muster list.



Article link:

https://support.riw.net.au/support/solutions/articles/51000029716


Did you find it helpful? Yes No

Send feedback
Sorry we couldn't be helpful. Help us improve this article with your feedback.

How can a company view the shift activity of a cardholder?

This article details how a company can view the shift activity of a cardholder.


Swipe in and swipe out data for a cardholder across a project and/or site provides shift information. A project and/or site must be identified before shift data can be displayed.



This instruction applies to the following RIW System User Roles:

  • Advanced Project Admin
  • Assessor
  • Employer Admin
  • Employer Admin - No Payment
  • Employer Admin - Read Only
  • Helpdesk
  • Network Manager
  • Network Manager - Read Only
  • Project Admin
  • Site Admin

Step 1: Log in to the RIW System

Go to https://app.riw.net.au and login using your credentials.


Step 2: Search for People

On the main dashboard, click on the Search for People  shortcut.

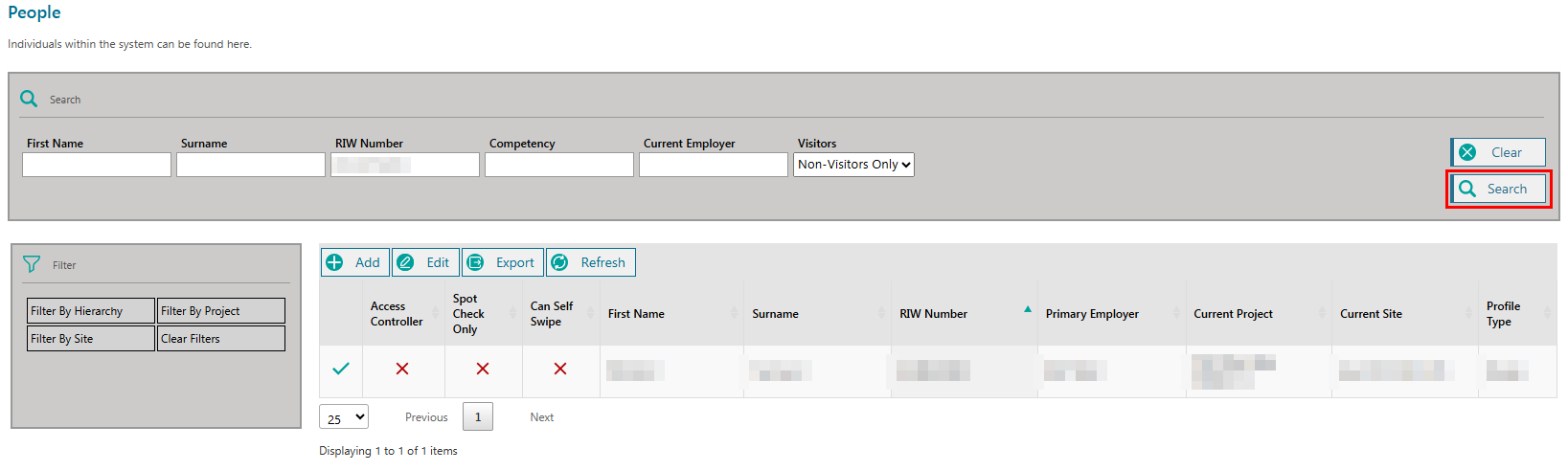

Step 3: Search criteria

Complete search criteria to find the cardholder and click on the Search button.

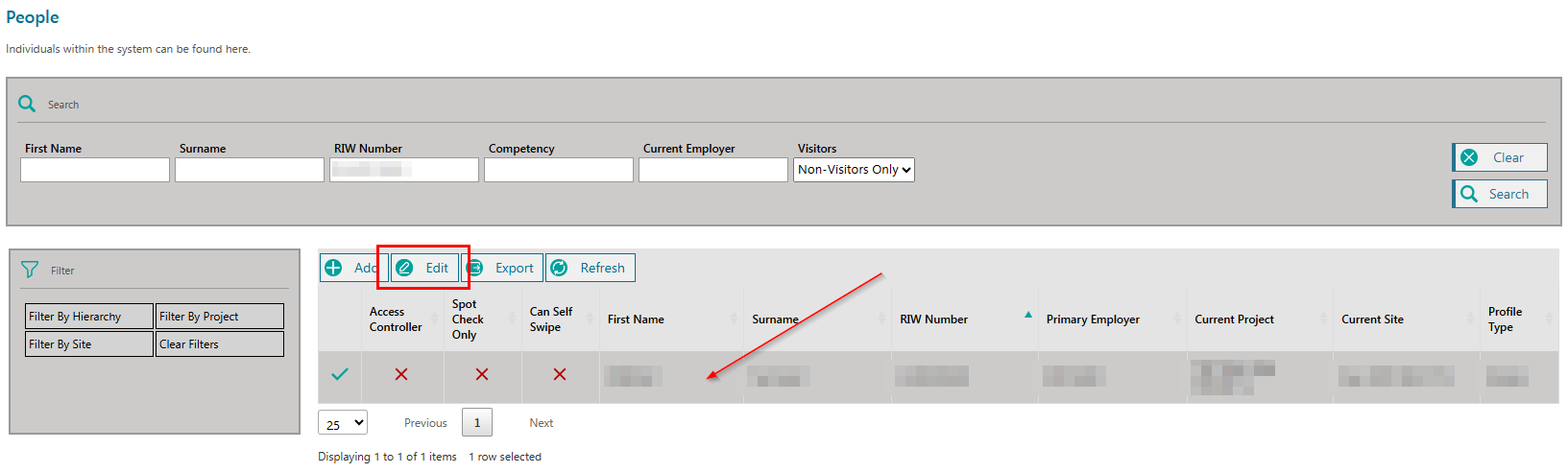

Step 4: Highlight cardholder

From the returned results, highlight the cardholder row and click on the Edit button.

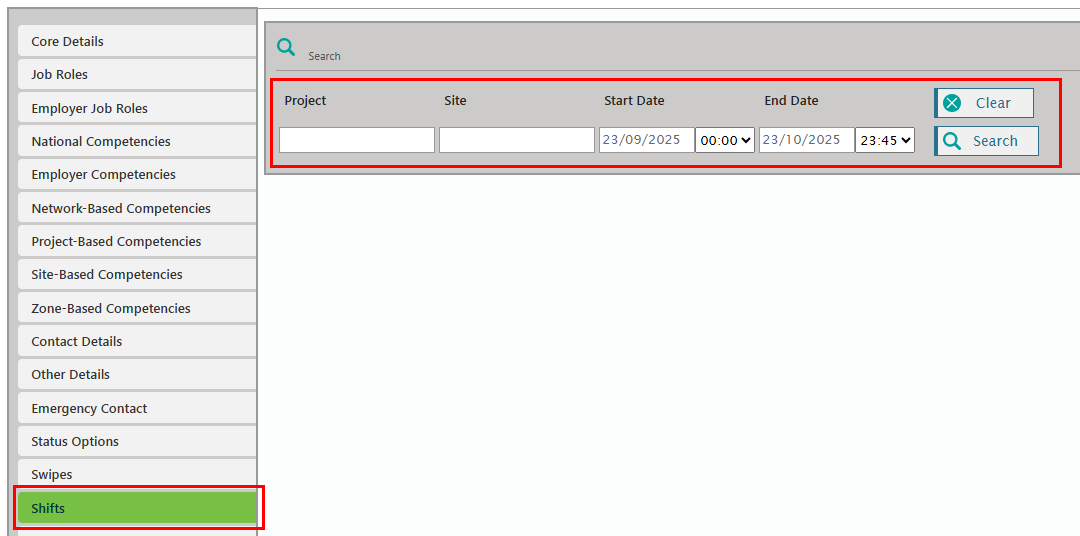

Step 5: Access the Shift menu

Click on the Shift tab from the left hand side menu of the cardholders profile.


A project and/or site must be identified before shift data can be displayed.  Click in the Project field and commence typing to reveal a drop down list of available projects, and then similarly for the Site field.


By default, shifts for the project and/or site selected during the last month is displayed, however, the date and time filters can be adjusted to change the period displayed.  Click Search when complete.

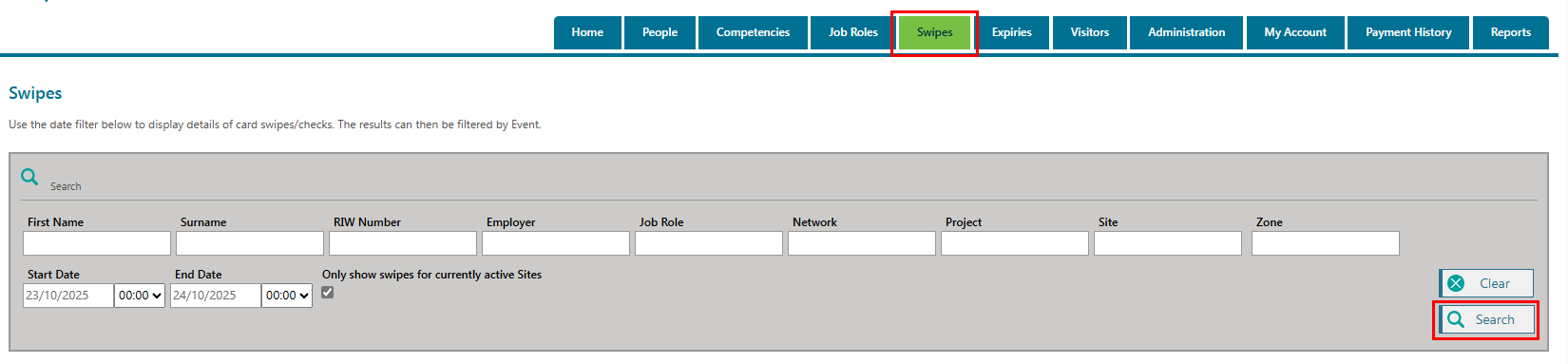

Step 6: Swipes Menu - An alternative approach to access shift data

Shift data may also be accessed by going to the Swipes menu available from the tab menu.  This provides the user with a number of ways to analyse the swipe and shift activity of cardholders, by toggling a number of filters such as network, project, site, zone, job role or date/time.


As per above, a project and/or site must be identified before shift data can be displayed.  Click Search once the filters have been set.

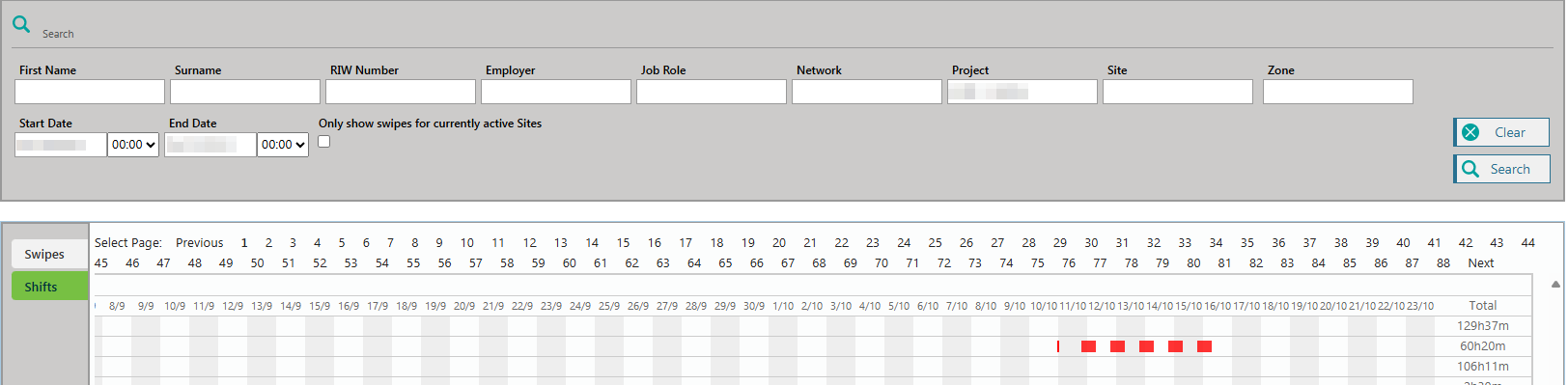

When the results have been returned, click on the Shifts menu on the left hand side.

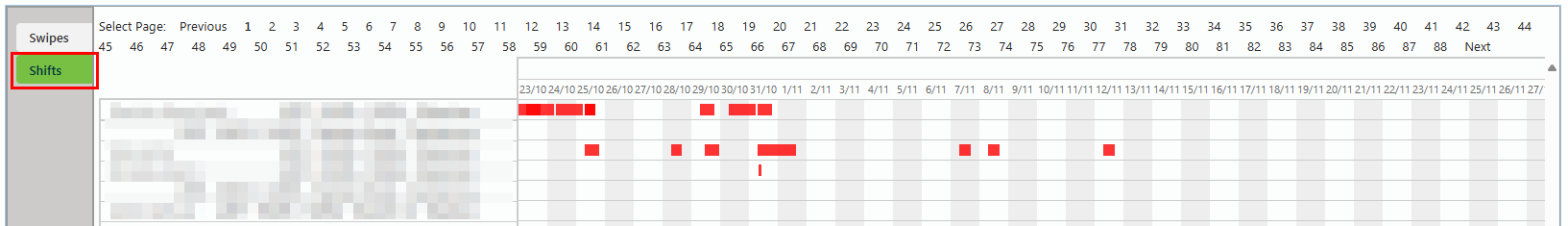

If a wide date range has been selected, use the horizontal scroll bar to view days which are off to the right of the screen. Hover over a shift period (indicated by a red block) to reveal details about the shift.




Step 7: Export results

Once the required selection is made, the report can be exported to a .CSV file by clicking on the Export button.




RIW Knowledge Centre Article Link:

https://support.riw.net.au/support/solutions/articles/51000149676


Did you find it helpful? Yes No

Send feedback
Sorry we couldn't be helpful. Help us improve this article with your feedback.

What are the different types of swipe events and deny reasons in the RIW System?


This article details the different type of swipe events and deny reasons in the RIW System.  Swipe events and their accompanying deny reason (where access is denied) is recorded against all swipe activity when a Rail Industry Worker presents their card to sign in or out of site, or when spot checked.


Swipe events and deny reasons can be viewed on on the Swipes tab in the RIW System, and can also be reported in custom reports.



This instruction applies to the following user roles:

  • Advanced Project Admin
  • Employer Admin
  • Employer Admin - No Payment
  • Employer Admin - Read Only
  • Helpdesk
  • Network Manager
  • Network Manager - Read Only
  • Project Admin
  • Site Admin
  • Rail Industry Worker (myRIW)
  • Access Controller
  • Spot Checker


Swipe Events


Swipe EventDescriptionPossible Deny Reasons
(recorded against the swipe event)
Access Denied - ManualWhen a Rail Industry Worker is manually denied site access by an Access Controller on the RIW App or Web Card Reader.
  • Appears unfit for duty
  • Does not hold the correct competencies
  • Does not hold the correct roles
  • Inadequate PPE
  • Inappropriate behaviour
  • Other network block
  • Outside Working Hours

Access Denied - SystemWhen a Rail Industry Worker is automatically denied site access on the RIW App or Web Card Reader.


  • Cardholder subscription expired
  • Card cancelled
  • Card expired
  • Missing requirements
  • National block exists
  • Network block exists
  • No current employer
  • Site Block Exists
  • Outside Working Hours
Automatic Access DeniedWhen a Rail Industry Worker is automatically denied site access on a Physical Access Control (PAC) device.
  • Cardholder subscription expired
  • Card cancelled
  • Card expired
  • Missing requirements
  • National block exists
  • Network block exists
  • No current employer
  • Site Block Exists
  • Outside Working Hours
Automatic Swipe inWhen a successful swipe in event is recorded on a Physical Access Control (PAC) device.
Automatic Swipe OutWhen a successful swipe out event is recorded on a Physical Access Control (PAC) device.
Award CompetencyWhen a competency is awarded to a Rail Industry Worker by an Access Controller in the RIW App or Web Card Reader.
Award Competency DeniedWhen a competency is awarded to a Rail Industry Worker by an Access Controller in the RIW App or Web Card Reader, however the cardholder would otherwise be denied access to site as per automatic deny reasons.
  • Cardholder subscription expired
  • Card cancelled
  • Card expired
  • Missing requirements
  • No current employer
Cardless Award CompetencyWhen a competency is awarded to a Rail Industry Worker by an Access Controller using the Forgotten Card function in the RIW App or Web Card Reader.

Cardless Spot CheckWhen a successful spot check event is recorded for a Rail Industry Worker by an Access Controller using the Forgotten Card function in the RIW App or Web Card Reader.
Cardless Swipe InWhen a successful swipe in event is recorded for a Rail Industry Worker by an Access Controller using the Forgotten card function in the RIW App or Web Card Reader.
Cardless Swipe OutWhen a successful swipe out event is recorded for a Rail Industry Worker by an Access Controller using the Forgotten card function in the RIW App or Web Card Reader.

Kiosk Access DeniedWhen a Rail Industry Worker is automatically denied site entry when swiping in at a Kiosk.
  • BrAC Test Non-Negative
  • Cardholder subscription expired
  • Card cancelled
  • Card expired
  • Missing requirements
  • National block exists
  • Network block exists
  • No current employer
  • Site Block Exists
  • Outside Working Hours

Kiosk Cardless Swipe InWhen a successful swipe in event is recorded for a Rail Industry Worker at a Kiosk using the Forgotten Card function.
Kiosk Cardless Swipe OutWhen a successful swipe out event is recorded for a Rail Industry Worker at a Kiosk using the Forgotten Card function.

Kiosk Swipe inWhen a successful swipe in event is recorded for a Rail Industry Worker at a Kiosk.


Kiosk Swipe OutWhen a successful swipe out event is recorded for a Rail Industry Worker at a Kiosk.

Kiosk Visitor Access DeniedWhen a visitor is automatically denied site entry when swiping at a Kiosk.
  • Host not on site
  • Visitor Pass Invalid Site
  • Visitor Pass Invalid Date
  • Visitor Pass Cancelled
Kiosk Visitor Swipe inWhen a successful swipe in event is recorded for a visitor at a Kiosk.

Kiosk Visitor Swipe OutWhen a successful swipe out event is recorded for a visitor at a Kiosk.

Muster List Swipe OutWhen a muster list swipe out is performed by a Site Admin, Project Admin or Advanced Project Admin.
Risk Assessed Swipe inWhen an Access Controller performs a risk assessed swipe in on the RIW App or Web Card Reader where the Rail Industry Worker was initially denied access in excess of site working hour rules.
Self Swipe InWhen a Rail Industry Worker has successfully self-swiped in (where self-swipe is enabled) using the RIW App.
Self Swipe OutWhen a Rail Industry Worker has successfully self-swiped out (where self-swipe enabled) using the RIW App.

Spot CheckWhen a Rail Industry Worker has been spot checked by an approved Spot Checker in the RIW App or Web Card Reader.

Swipe in
When a successful swipe in event is recorded for a Rail Industry Worker by an Access Controller on the RIW App or Web Card Reader.

Swipe OutWhen a successful swipe out event is recorded for a Rail Industry Worker by an Access Controller on the RIW App or Web Card Reader.

Team Swipe OutWhen an Access Controller has swiped out their team in the RIW App or Web Card Reader.
Visitor Access Denied - ManualWhen visitor access is denied manually by an Access Controller on the RIW App or Web Card Reader
  • Appears unfit for duty
  • Does not hold the correct competencies
  • Does not hold the correct roles
  • Inadequate PPE
  • Inappropriate behaviour
  • Other network block

Visitor Access Denied - SystemWhen visitor access is automatically denied on the RIW App or Web Card Reader.
  • Visitor Pass Invalid Site
  • Visitor Pass Invalid Date
  • Visitor Pass Cancelled

Visitor Muster List Swipe Out

When a muster list swipe out, which includes a visitor, is performed by a Site Admin, Project Admin or Advanced Project Admin.
Visitor Spot CheckWhen a Visitor has been spot checked by an approved Spot Checker in the RIW App or Web Card Reader.
Visitor Swipe inWhen a successful swipe in event is recorded for a visitor by an Access Controller on the RIW App or Web Card Reader.

Visitor Swipe OutWhen a successful swipe in event is recorded for a Visitor by an Access Controller on the RIW App or Web Card Reader.

Visitor Team Swipe OutWhen an Access Controller has swiped out their team in the RIW App or Web Card Reader, and where the team included a visitor.




Article link:

https://support.riw.net.au/support/solutions/articles/51000311120
